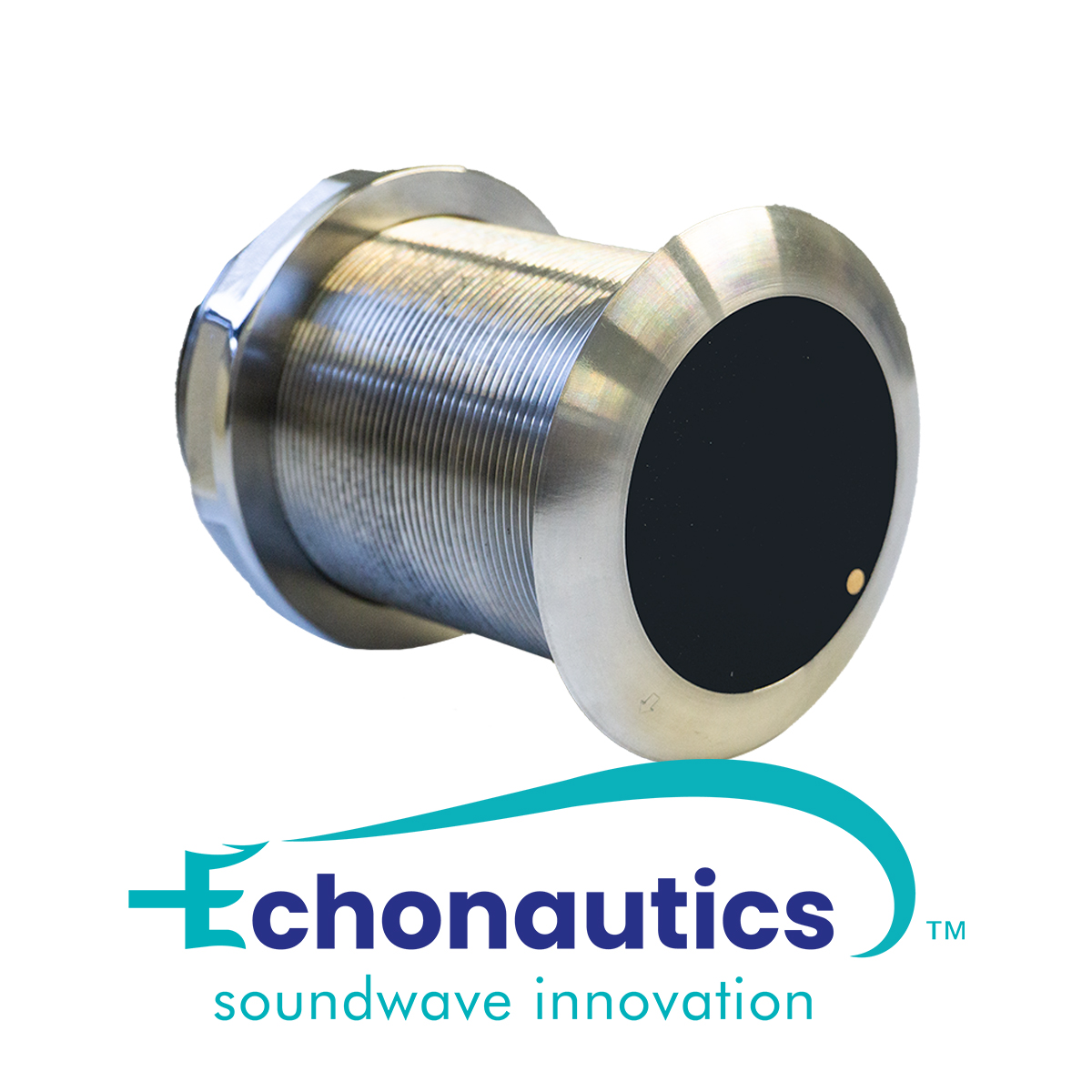

Echonautics ST87 series
Angled Element Low Profile Stainless Steel Transducers
CHIRP | Medium or High Frequency | 1KW
Transducer Overview
Featuring a rugged and corrosion-resistant stainless-steel housing, this tilted element thru hull delivers 1kW CHIRP performance for today’s top-end sonar systems. The low-profile design minimizes drag below the hull surface for better depth performance, target resolution and bottom detail over a range of boat speeds. This is the ultimate transducer option for a wide variety of sportfishing boats.
The ST87 Series is offered in 0°, 12° and 18° angled elements to accommodate different hull deadrise angles up to 24°. All three tilt options are offered in Medium Frequency CHIRP (85-135kHz) and High Frequency CHIRP (130-210kHz).
Applications
-
Recreational fishing
-
Sport fishing
-
Steel or aluminum hulls
Key Features
Echonautics ST87 series Key Features
Echonautics ST87 series Key Features
-
Wide-band CHIRP support
-
Optimized acoustic geometry
-
Durable marine-grade construction
-
Stable performance across depth ranges
-
Three tilt options: Available in 0°, 12° and 18° Angled Element to accommodate various hull deadrise angles up to 24° while delivering a focused vertical beam on targets below.
-

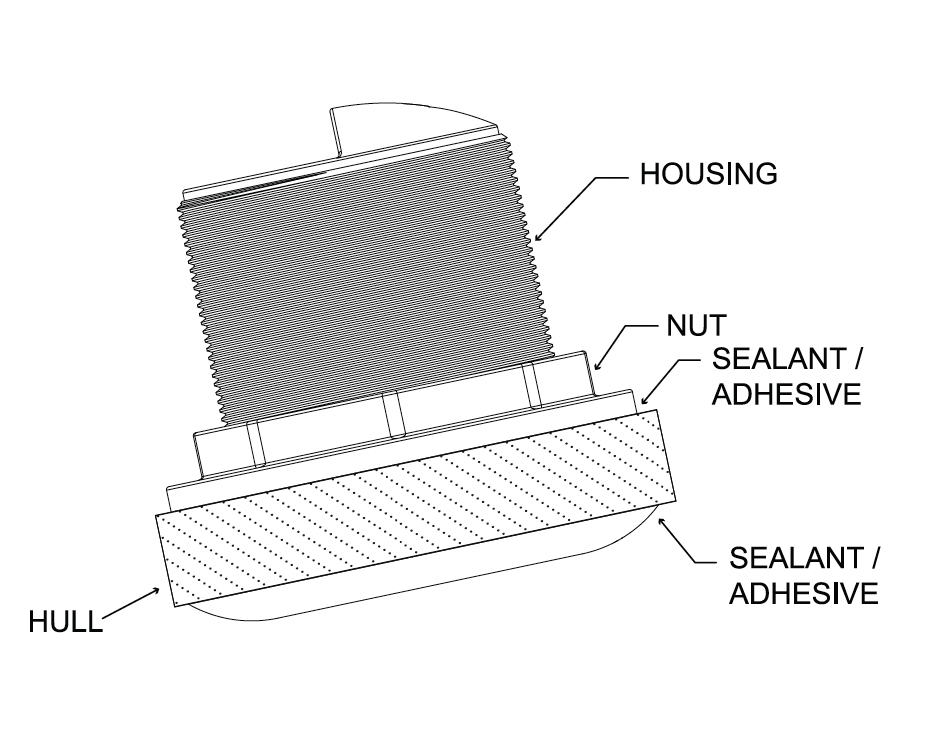

Low profile thru-hull design minimizes drag below the hull surface and provides superior fish finding and bottom tracking performance at high speeds
-
Marine grade 316 Stainless Steel housing :
- Surface Passivation treatment
- Resistant to the corrosive effects of NaCIorsaltin seawater.

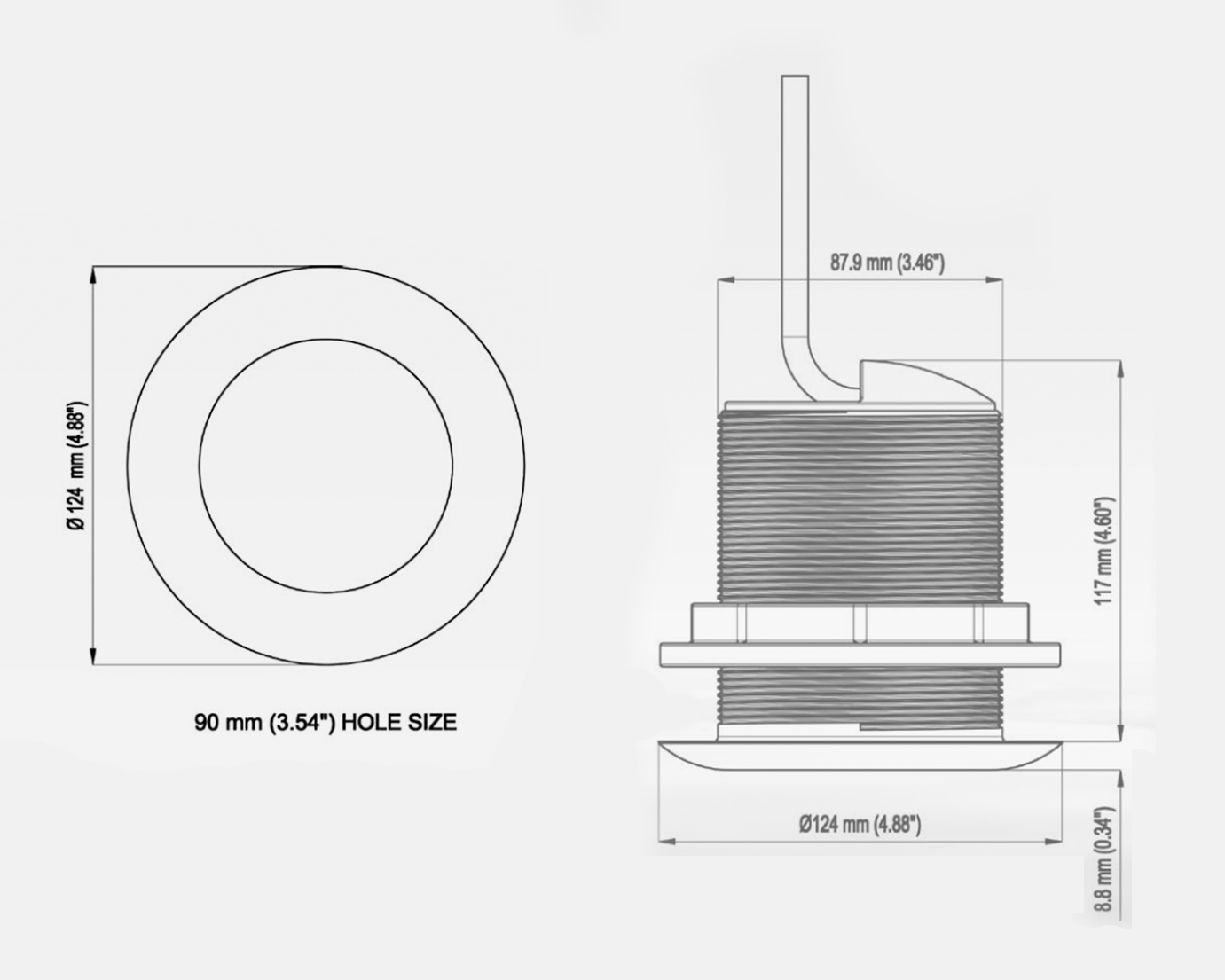

Technical Specifications
ST87M1KW tech specs
| Model | ST87M1KW |
| Sonar type | CHIRP ready |
| Frequency | High 85 - 135 kHz |
| Power | 1KW |
| Mounting | Thru Hull, low profile |
| Material | Stainless Steel |
| Deadrise | 18° tilt version: for 16° to 24° hull deadrise 12° tilt version: for 8° to 15° hull deadrise 0° tilt version: for 0° to 7° hull deadrise |
| Beamwidth | 20° to 12° @ 3db |
| Max Depth | Max 457 m (1,499 ft) |
| Temperature sensor | NTC |
| Acoustic window | Urethane |
| Weight | 3540 g (49 oz) |
| Hole diameter | 90 mm (3.54”) |
| Cable length | 8 m (26 ft) |

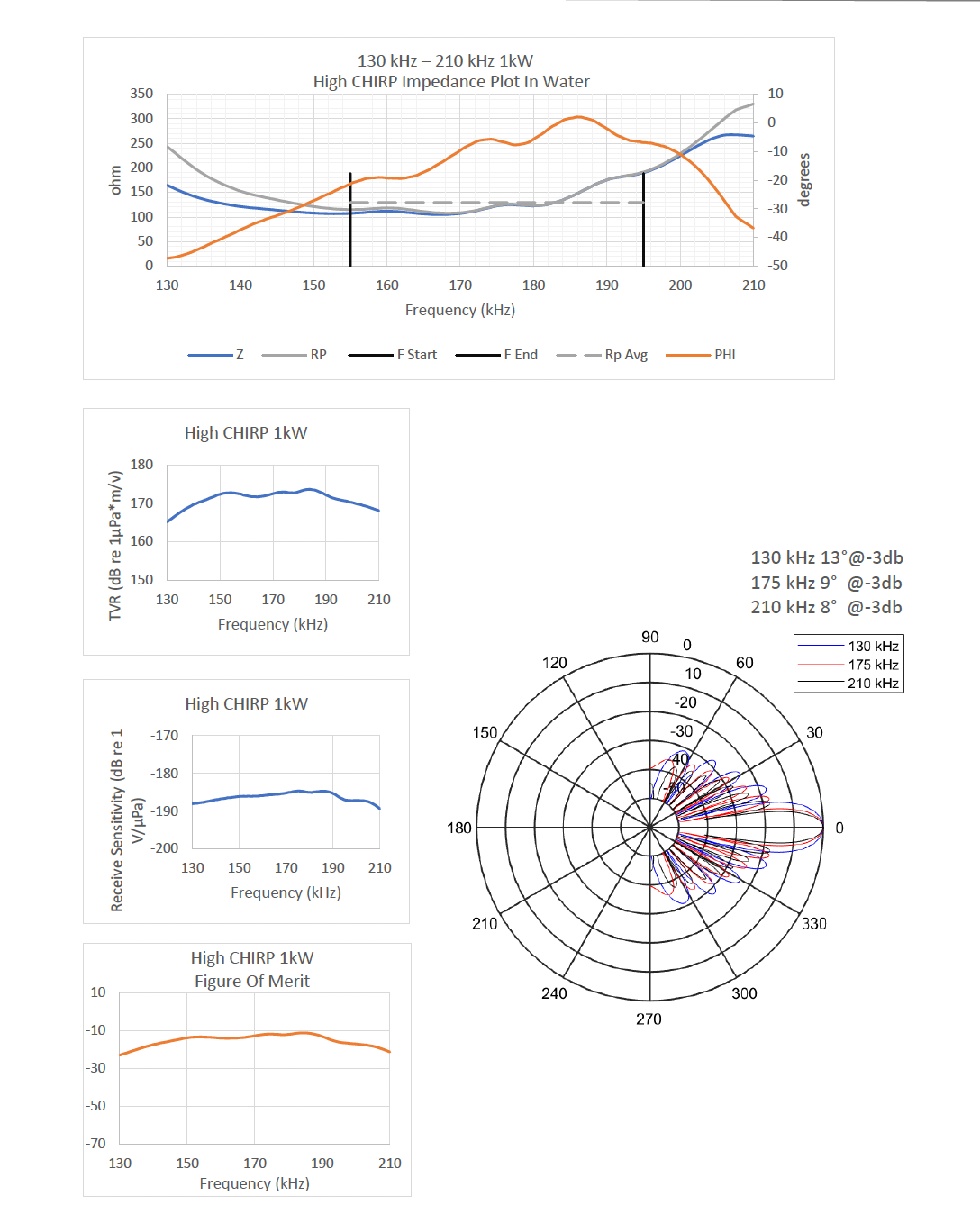

ST87H1KW tech specs
| Model | ST87H1KW |
| Sonar type | CHIRP ready |
| Frequency | High 130 - 210 kHz |
| Power | 1KW |
| Mounting | Thru Hull, low profile |
| Material | Stainless Steel |
| Deadrise | 18° tilt version: for 16° to 24° hull deadrise 12° tilt version: for 8° to 15° hull deadrise 0° tilt version: for 0° to 7° hull deadrise |
| Beamwidth | 13° to 8° @ -3db |
| Max Depth | Max 304 m (997 ft) |
| Temperature sensor | NTC |
| Acoustic window | Urethane |
| Weight | 3540 g (49 oz) |
| Hole diameter | 90 mm (3.54”) |
| Cable length | 8 m (26 ft) |
Versions
Echonautics ST87 series comparative table
|
|
ST87M1kWMedium Frequency CHIRP 1KW ORDER CODE 0°: UX0TDF00EN |
ST87H1kWHigh Frequency CHIRP 1KW ORDER CODE 0°:
UX0TDG00EN |
CHIRP |
✓ |
✓ |
CW |
x |
x |
300W |
x |
x |
600W |
x |
x |
1KW |
✓ |
✓ |
LOW |
x |
x |
MEDIUM |
✓ |
x |
HIGH |
x |
✓ |
DUAL |
x |
x |
0°, 12°, 18° |
✓ |
✓ |
BRONZE |
x |
x |
STEEL |
✓ |
✓ |
THRU HULL |
✓ |
✓ |
STEM |
x |
x |
